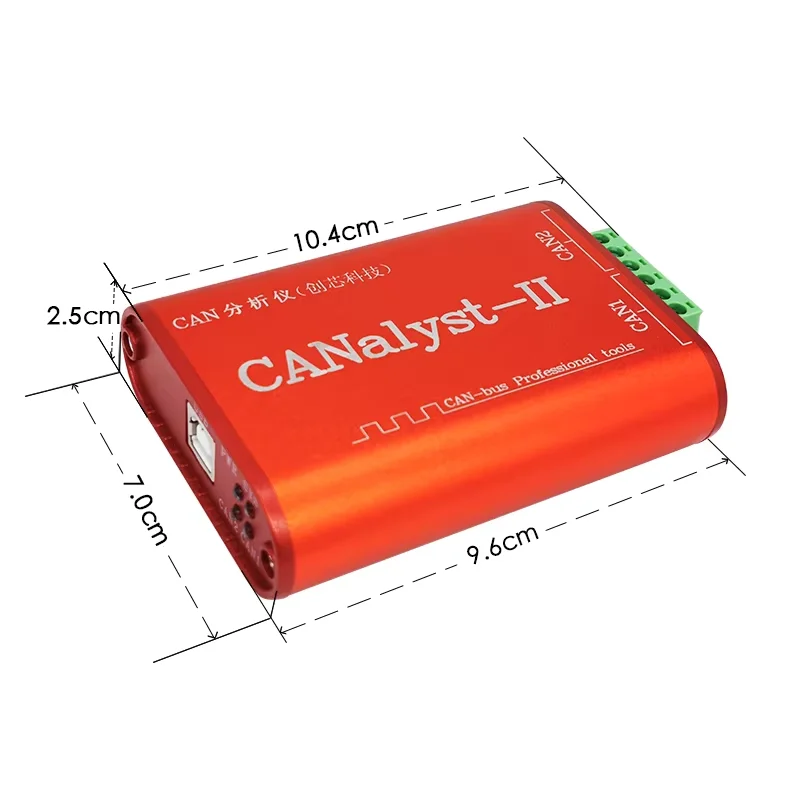

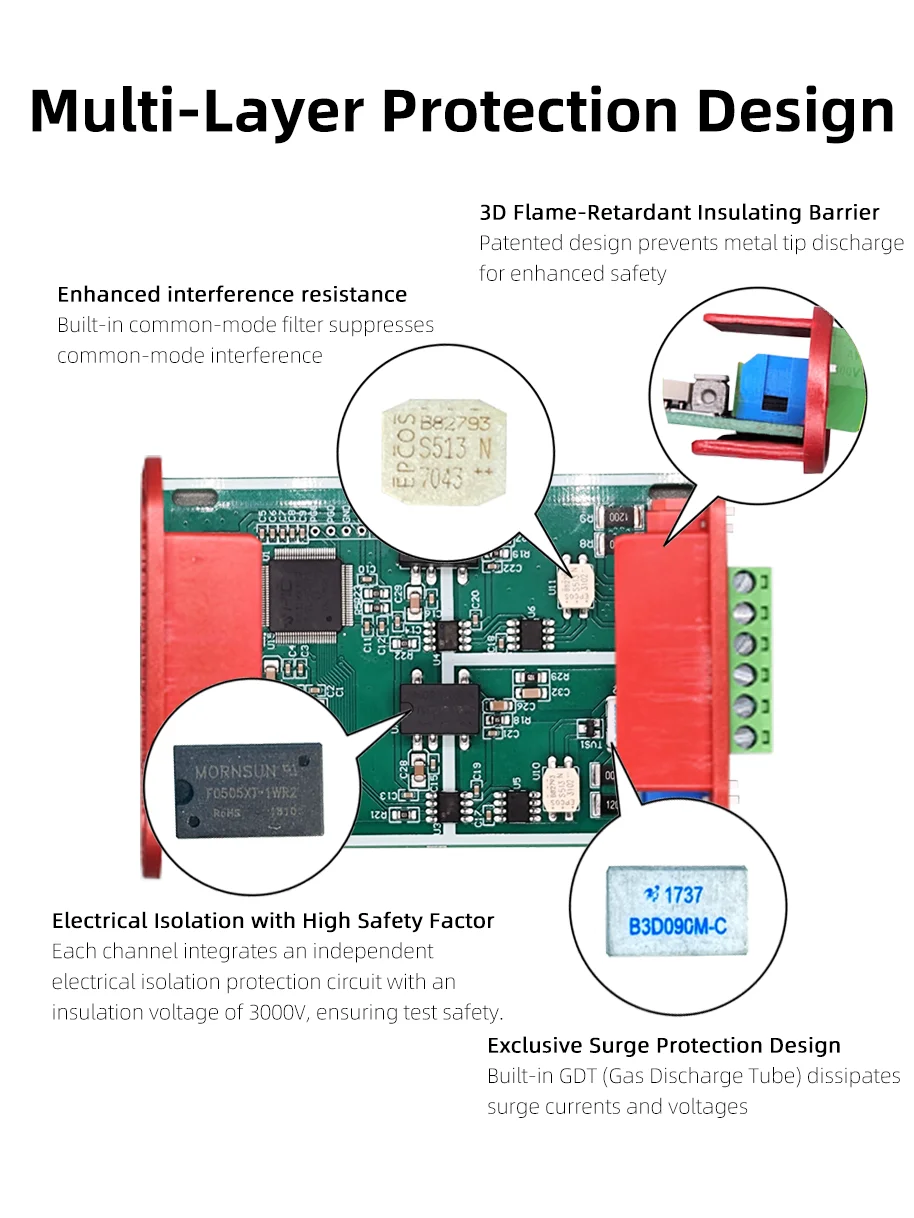

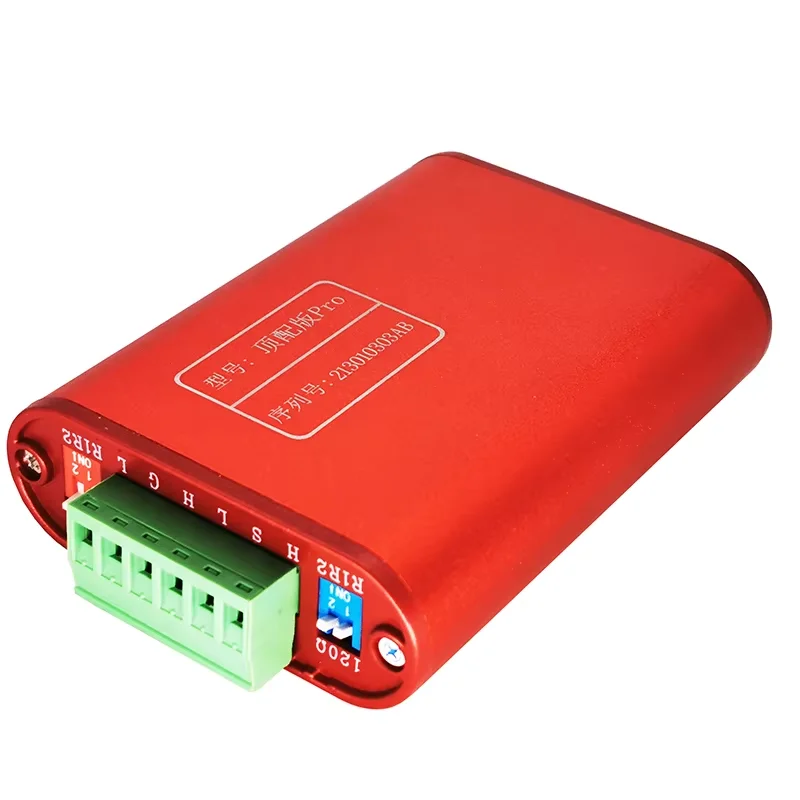

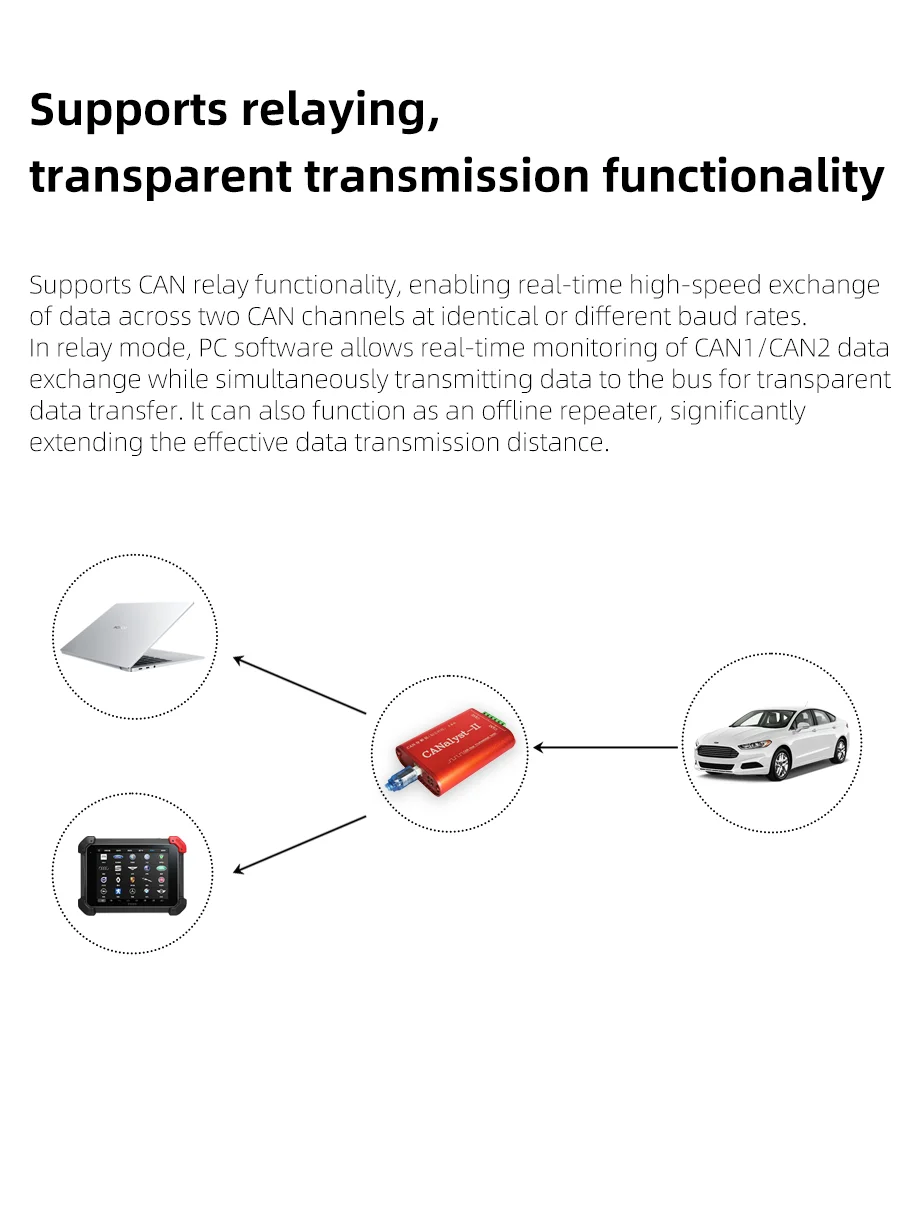

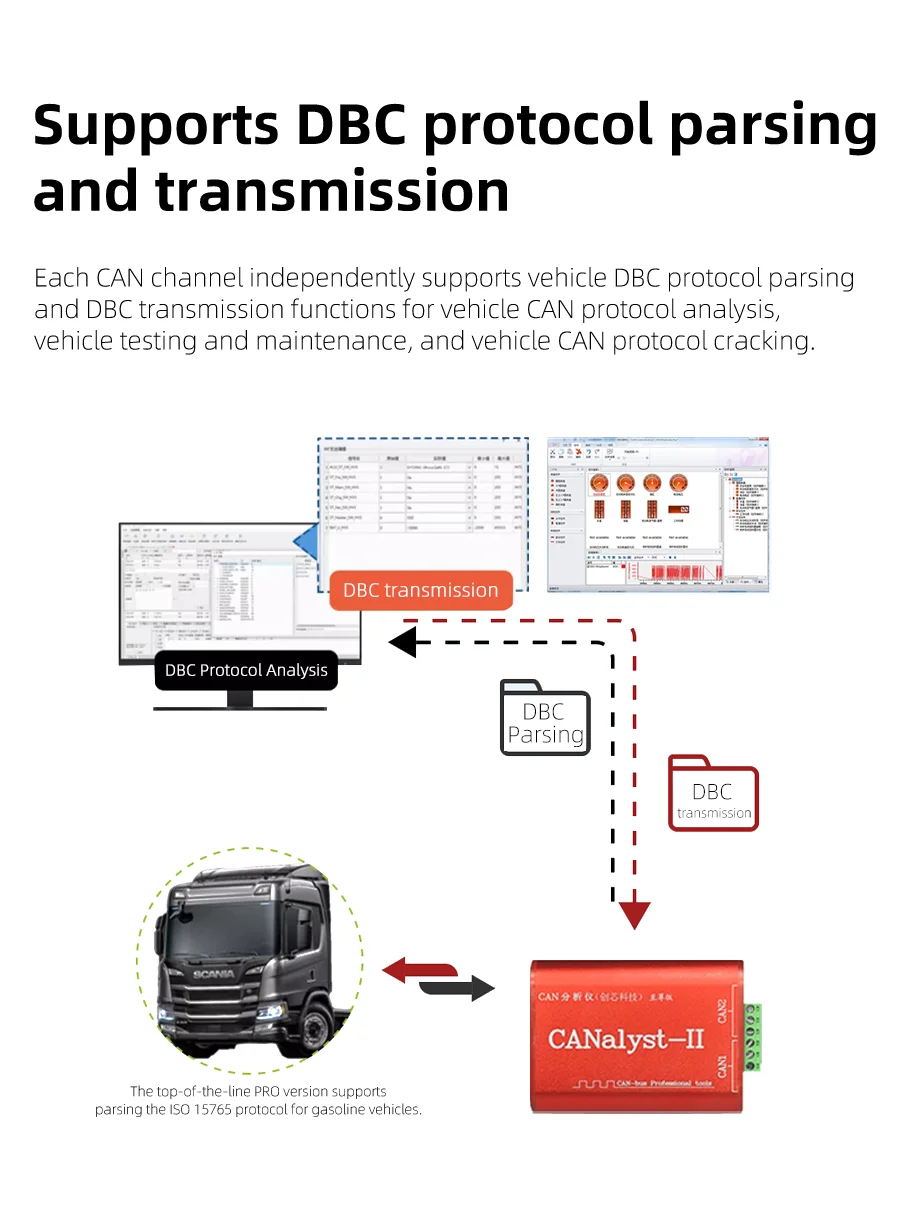

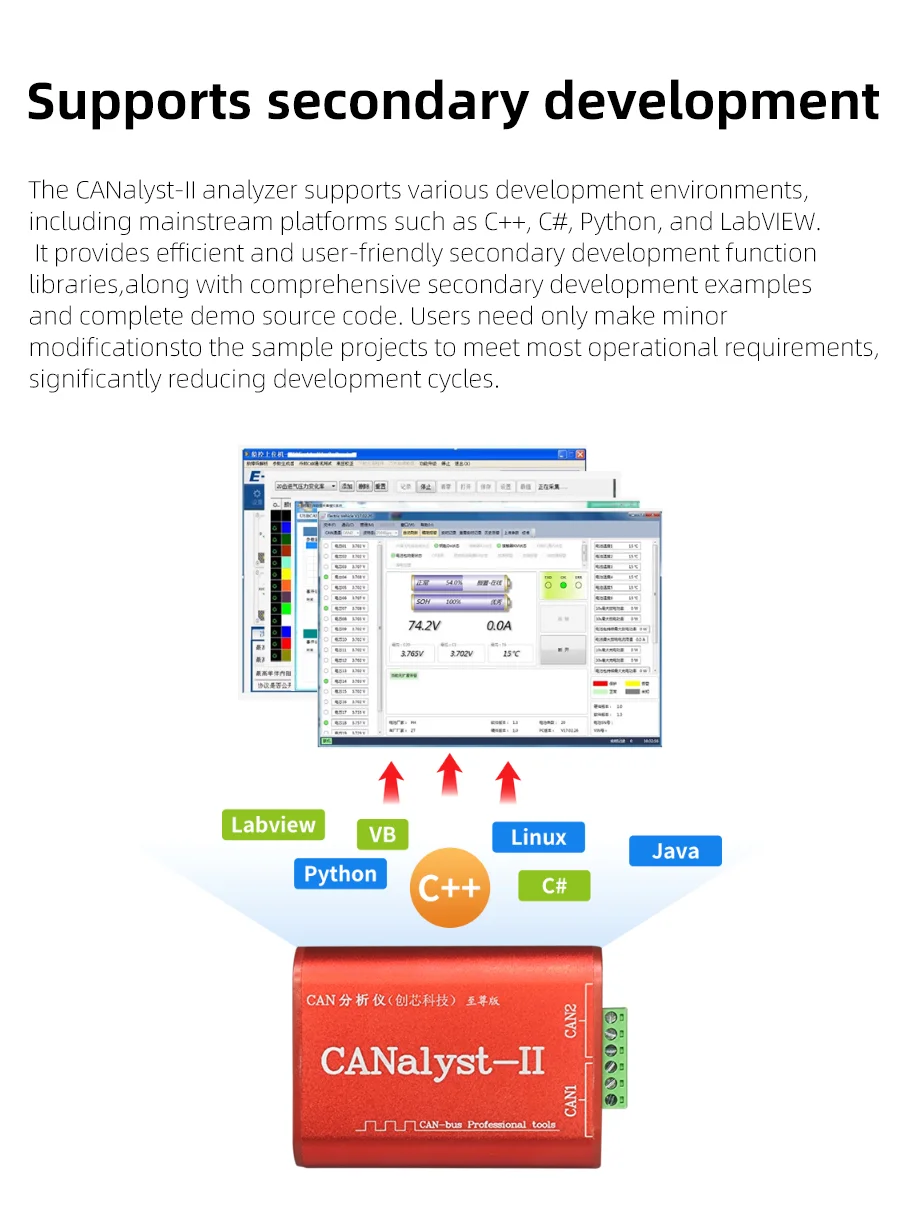

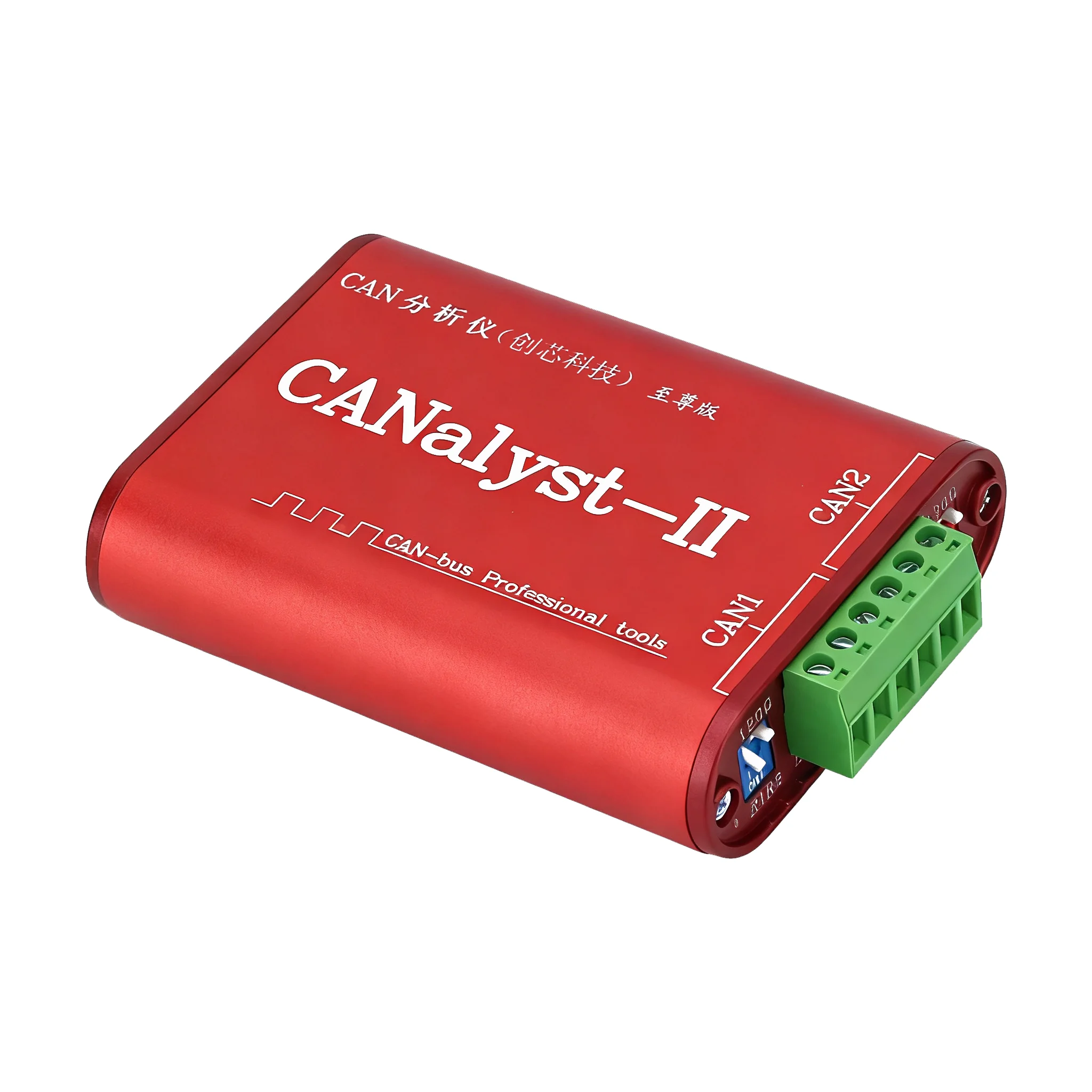

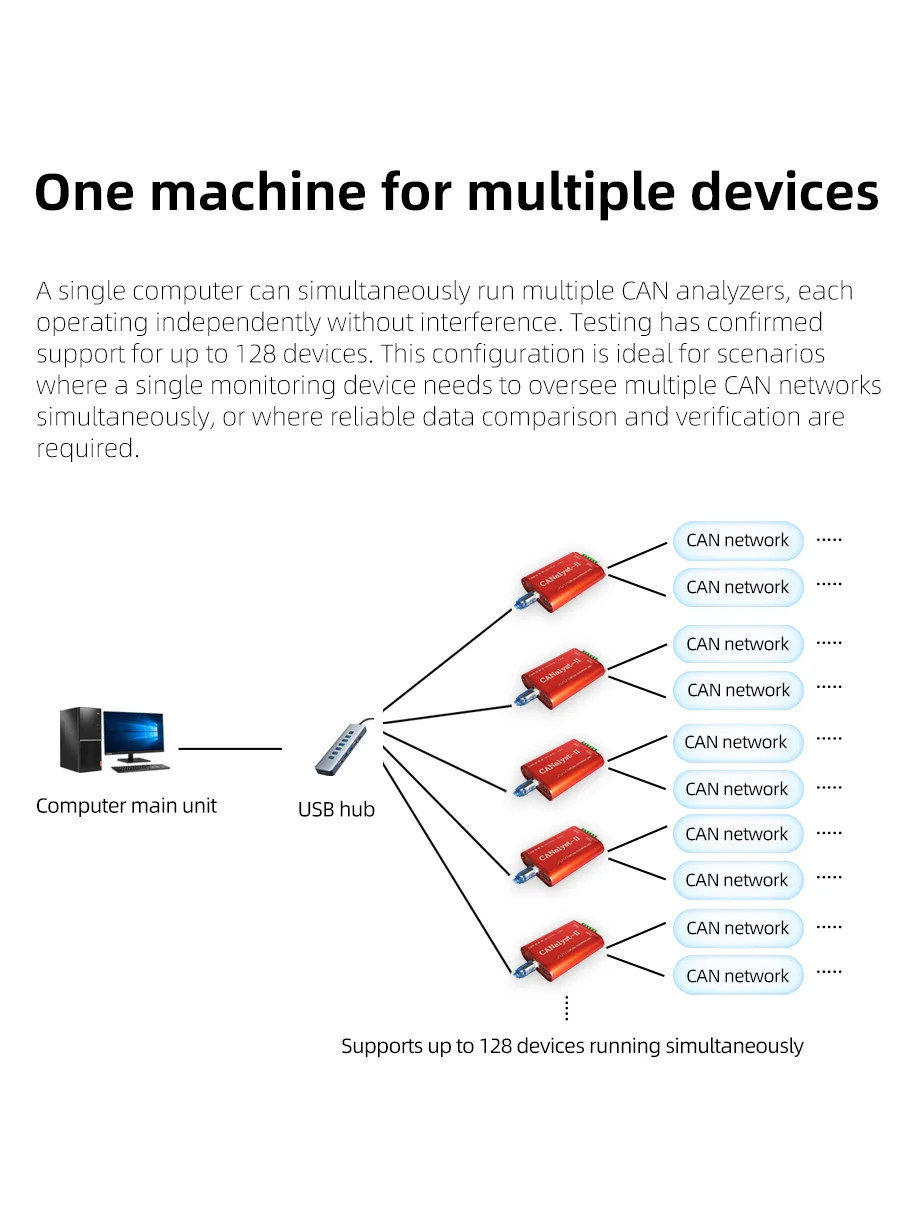

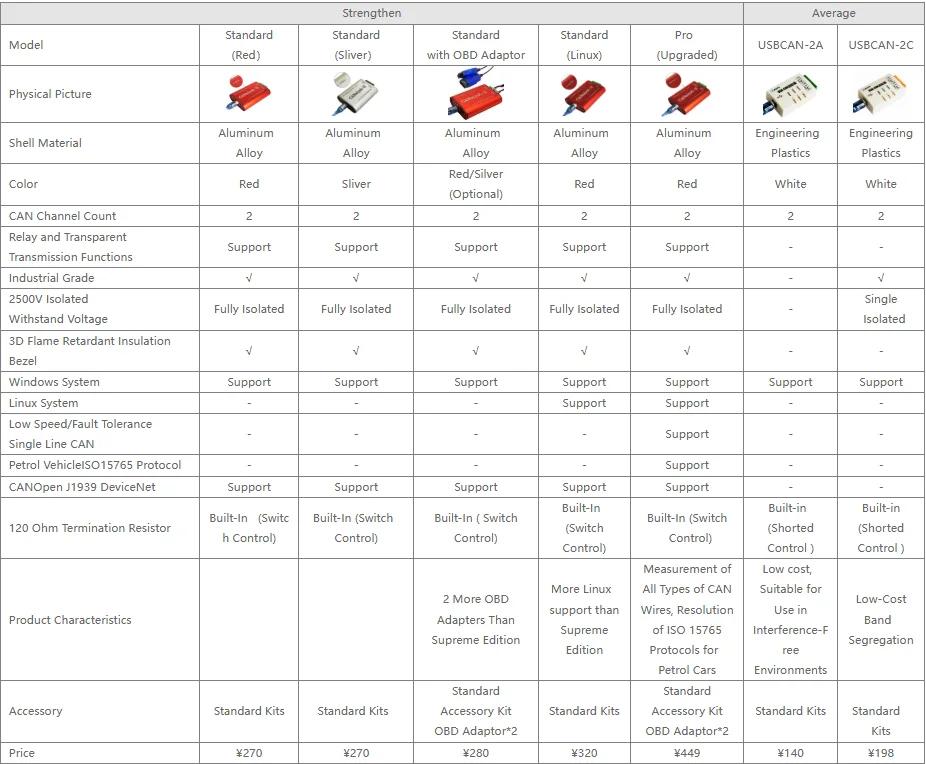

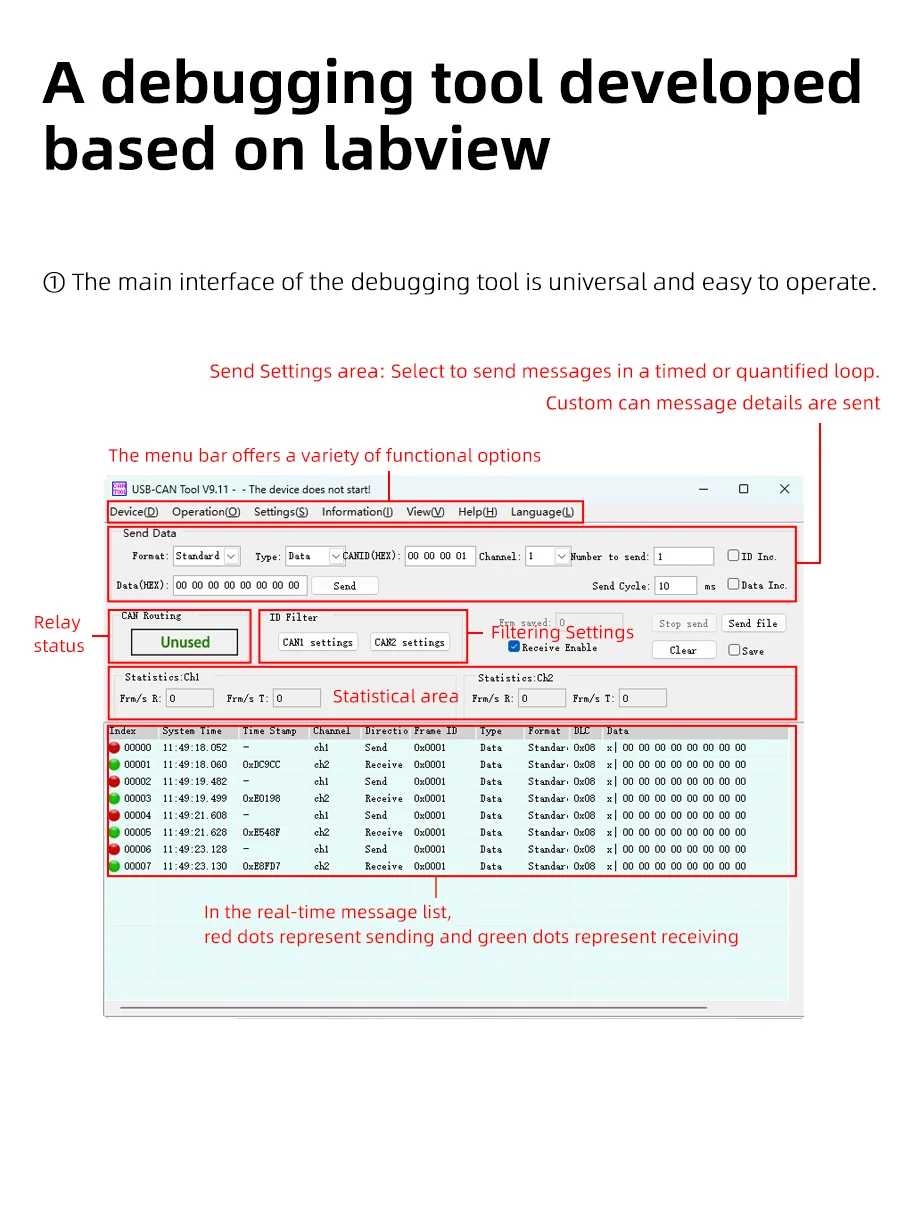

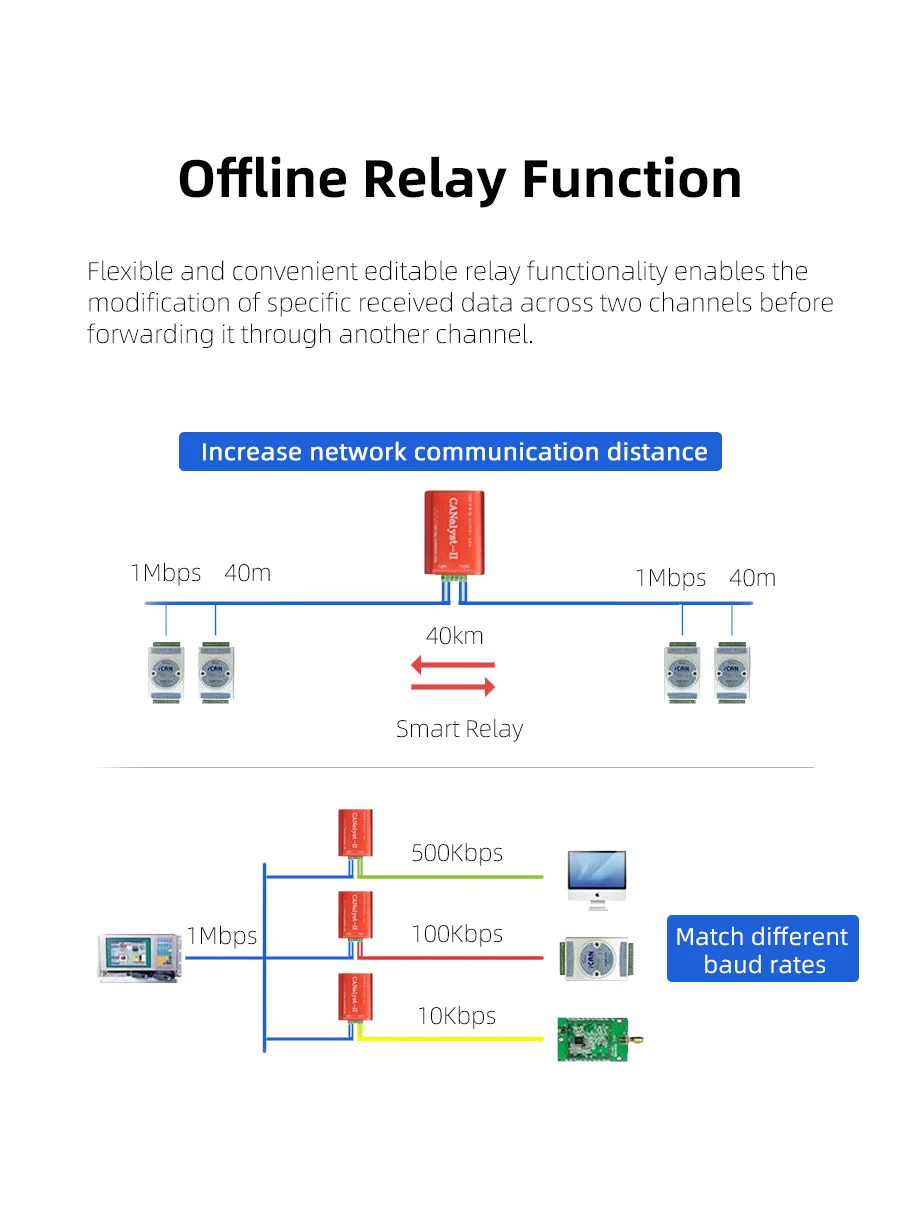

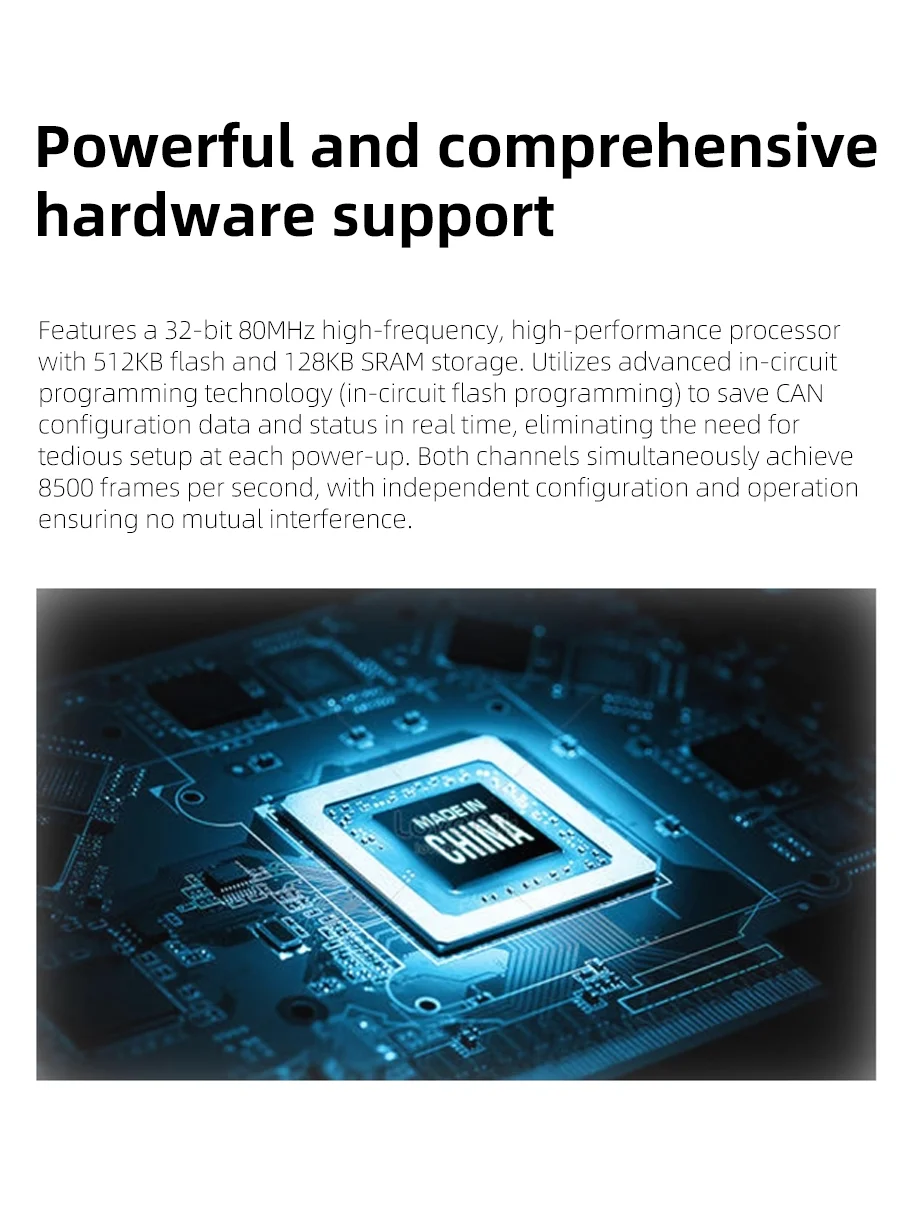

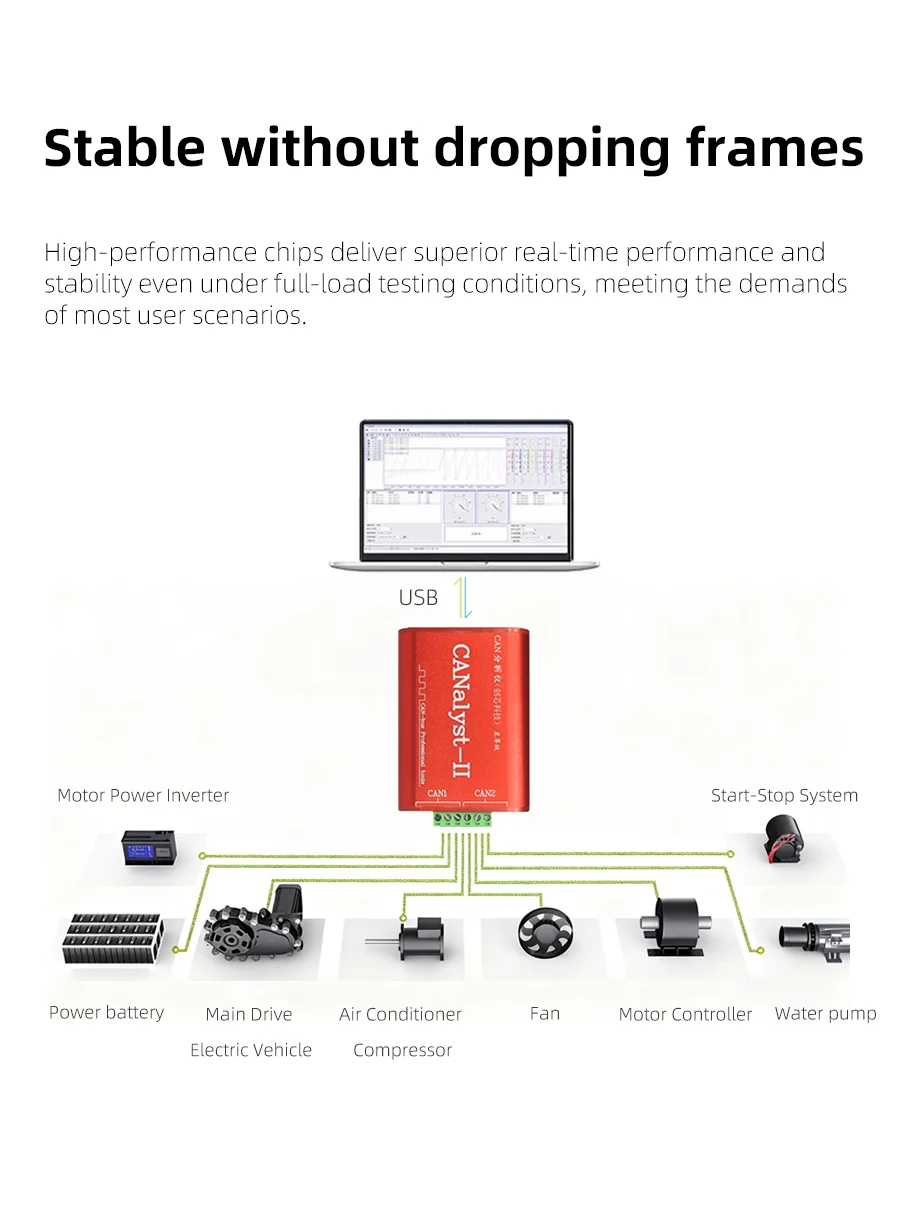

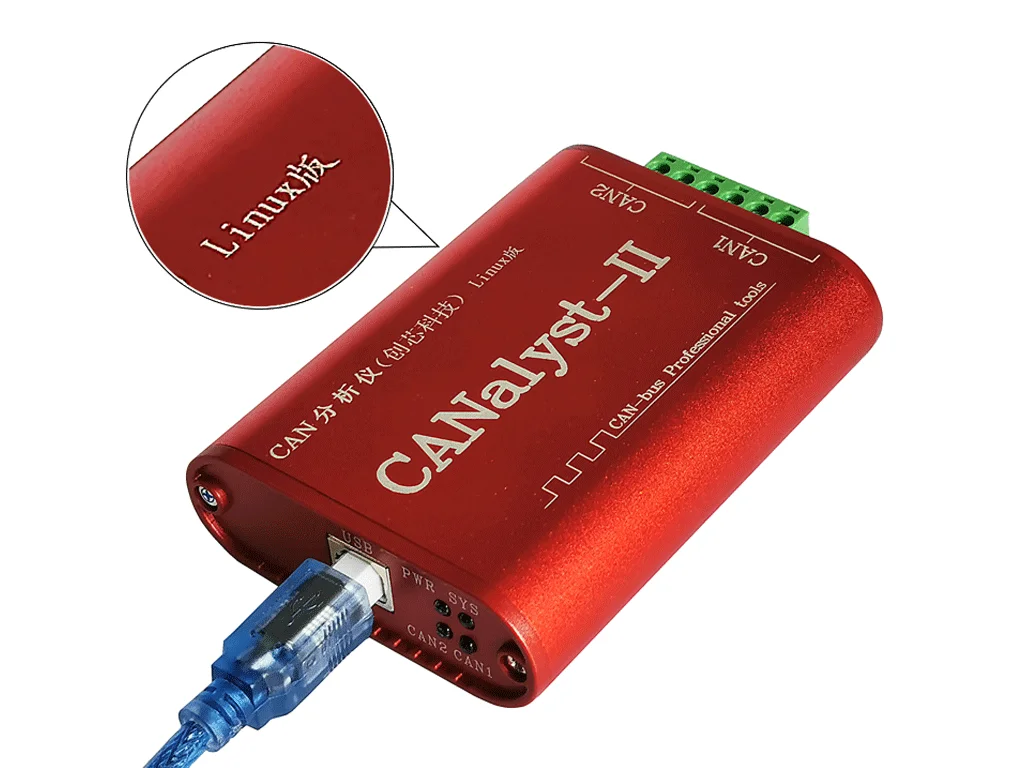

Features: · USB to CAN bus protocol conversion; · Equipped with 2 CAN interfaces, both high-speed CAN; · USB interface supports USB 3.0, USB 2.0, and is backward compatible with USB 1.1; · Supports CAN 2.0A/B, standard frames, and extended frames; supports data frame and remote frame formats; · Bidirectional transmission support for CAN transmission and reception; · Programmable baud rate from 10Kbps to 1Mbps, configurable via software; · Dual CAN bus interfaces employ high-speed magnetic coupling isolation and dual-isolated DC-DC power supplies; Full three-terminal isolation (isolation between USB bus and each CAN bus, complete isolation between CAN1 and CAN2); · Isolation voltage rating: 3000V; · CAN1 channel incorporates a GDT ceramic discharge tube for effective surge current dissipation; · Built-in common-mode chokes/inductors on both CAN channels suppress common-mode interference, significantly enhancing immunity; · Supports relay and transparent transmission functions with 3000V isolation between CAN1 and CAN2; · Throughput: Each CAN channel (when operating simultaneously) achieves 8500 frames/s for reception and 8500 frames/s for transmission; (Simultaneous reception of 8500 frames/s on both channels enables USB speeds up to 17000 frames/s without frame loss); · Directly powered by USB bus, no external power supply required; · Operating temperature: -40°C to 85°C; · Enclosure dimensions: 104*70*25mm; · Product compatibility: Function library compatible with Guangzhou ZLG/ZhiYuan Electronics ZLG-USBCAN interface adapters; · System support: Standard version supports Win11/Win10/Win8/Win7/XP (64-bit/32-bit); Linux version supports Win11/Win10/Win8/Win7/XP (64-bit/32-bit) + Linux (64-bit/32-bit) · CAN Terminal: 2EDG-5.08-6P, Pitch: 5.08mm; The provided USB_CAN Tool software enables direct configuration, transmission, and reception of CAN bus data. Users may also reference the supplied DLL dynamic link libraries and sample code for VC/VB to develop custom applications, facilitating the creation of CAN system software products. During secondary software development, you need not understand complex USB interface communication protocols. Interfaces: 1. System indicator: LED indicator 2. USB-B port: Powered directly by USB bus, no external power supply required 3. CAN1 channel: Baud rate 10k-1M 4. CAN2 channel: Baud rate 10k-1M Accessory List： 1. CAN Analyzer Standard (Red) 1 unit 2. USB Communication Cable 1 piece 3. DuPont Wires 4 pieces 4. Flathead Screwdriver 1 piece To download materials, please visit our official website: https://www.zhcxgd.com/en/ZLXZ.html
